KVMA音视频键鼠矩阵

设备简介

KVMA传输系统（Keyword、Video、Mouse、Audio）是将DVI-I、音视频进行编码/解码，并通过网络进行远传。该系统由Tx、Rx两个设备组成，其中Tx设备是将来自DVI-I接口的视频和音频压缩编码，并通过网络传输到Rx设备；Rx设备能是将接受到的音视频压缩信号进行解码，并通过DVI-I视频接口、line out音频接口输出。

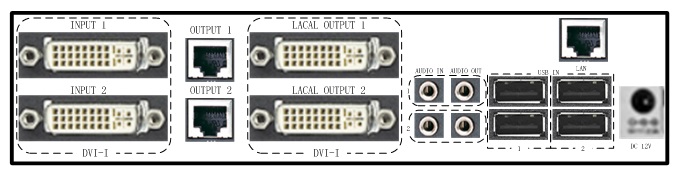

图1 Tx面板接口图

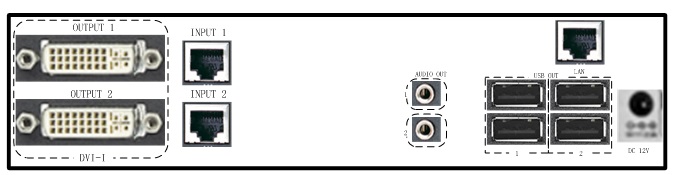

图2 Rx面板接口图

特点：

支持单屏幕（2路）或双屏幕（1路）的视频、音频、键鼠的传输；

支持任意数量的Tx和Rx的切换，切换耗时小于200ms；

采用计算机网络物理层传输，传输耗时小于100ms；

系统扩容简单，最大可支持200个Tx/Rx；

传输距离远，普通网线传输距离不小于150米，采用光纤传输距离不低于10km；

Tx接口：2个DVI-I输入，2个DVI-I本地环出，2个千兆网口，4个USB口，2个音频输入，2个音频本地环出，1个控制口；

Rx接口：2个DVI-I输出，2个千兆网口，4个USB口，2个音频输出，1个控制口；

典型使用方式

单机单屏KVMA延长应用模式

1台Tx可将本地2台单屏幕计算机的KVMA信号通过网络传输到远端，远端通过1台Rx分别接2套显示器、键盘、鼠标，在远端实现对本地计算机的控制。

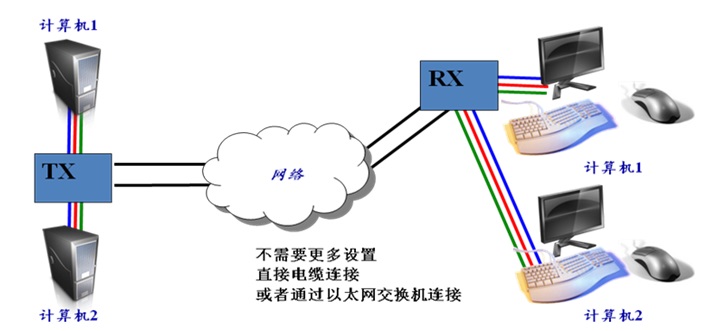

图3 单机单屏KVMA图

单机双屏KVMA延长应用模式

1台Tx可将本地1台双屏幕计算机的KVMA信号通过网络传输到远端，远端通过1台Rx接1套显示器、键盘、鼠标，在远端实现对本地计算机的控制。

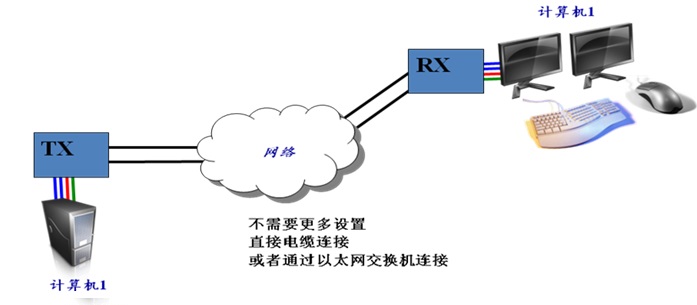

图4 单机双屏KVMA图

多机数字KVMA矩阵应用模式

系统通过M个Tx接入计算机终端，通过N个Rx输出视频、音频和键鼠；任意Rx可根据需要切换到任意Tx，实现音视频键鼠（KVMA）的矩阵功能。

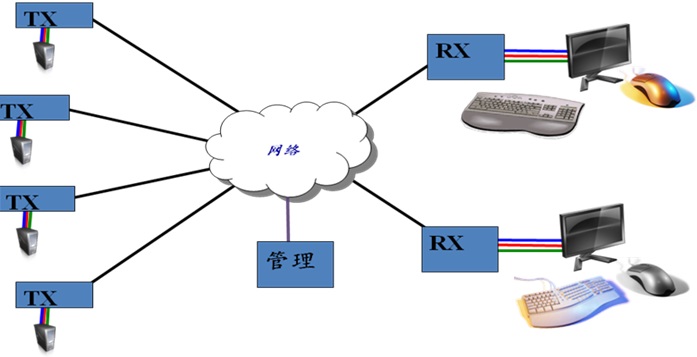

图5 多机数字KVMA图
