高性能计算系统

该产品主要针对高密度的高性能计算需求，将多种形式的计算板卡通过高速总线进行互联；采用混合并行计算框架，实现多机、多卡、多核的资源分配和负载均衡；提供适合多核的算法平台，针对用户需求，研制业务软件，该产品已用于多个业务领域。

硬件平台

该平台为6U高标准产品，最多可支持三类（CPU/DSP/GPU/）、9张板卡。在板卡间提供网络和PCIE的高速数据总线。

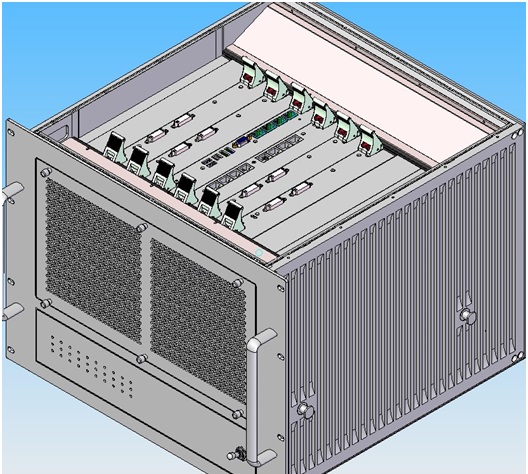

图1 高性能计算系统示意图

多核DSP板卡

在一张DSP板块上集成一颗66AK2H14芯片和三颗TMS320C6678芯片；

一颗66AK2H14芯片包括4个ARM Cortex-A15 @ 1.4GHz核和八个TMS302C66x™ DSP @ 1.2GHz核；

每颗TMS320C6678芯片包括TMS302C66x™ DSP @ 1.25GHz核；

接口：VPX、1个千兆、1个万兆；

功耗：低于100瓦；

环境要求：工作温度-；存储温度。

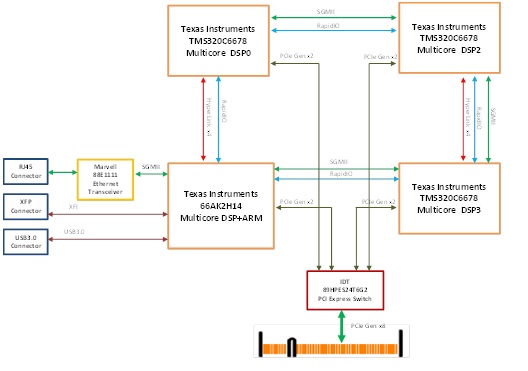

图2 多核DSP卡原理（VPX接口修改）

软件框架

针对高密度计算资源，通过软件框架屏蔽硬件差异。软件框架主要提供多核/多核的数据通信、多核/多卡计算资源的分配和负载均衡、对计算资源进行监控，提供良好的人机界面进行调试。

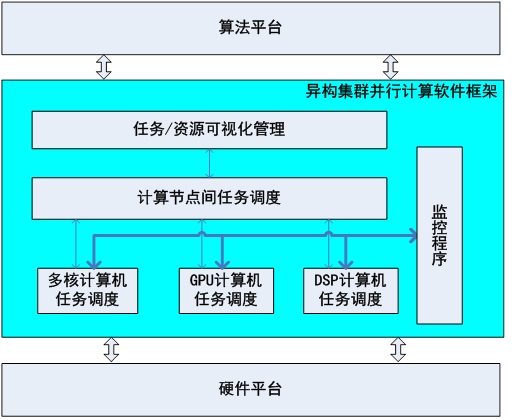

图3 异构集群并行计算软件框架
